  • Ender 3 S1: Direct Drive | CR Touch Auto Leveling 3D Printer

Ender 3 S1: Direct Drive | CR Touch Auto Leveling 3D Printer

Creality Sprite Direct Drive and CR Touch ABL 3D Printer. Was Recommended Best 3D Printer Under $500(2022) . Parts For Ender-3S1 Pro

$ 379.00 USD $ 400.00 USD Sale
13 reviews
Ship From
  • United States
  • China
  • Australia
  • Canada
  • Czech Republic
  • United Kingdom
Please select product attributes before purchasing~~
Model-1
  • Ender-3(S1)
  • Ender-3 S1+PEI Plate+Nozzles
Shipping
This item can't be shipped to this Country/Region
It is expected to arrive within3 daysand will cost£10to ship
Quantity
0.00 0.00 Sale

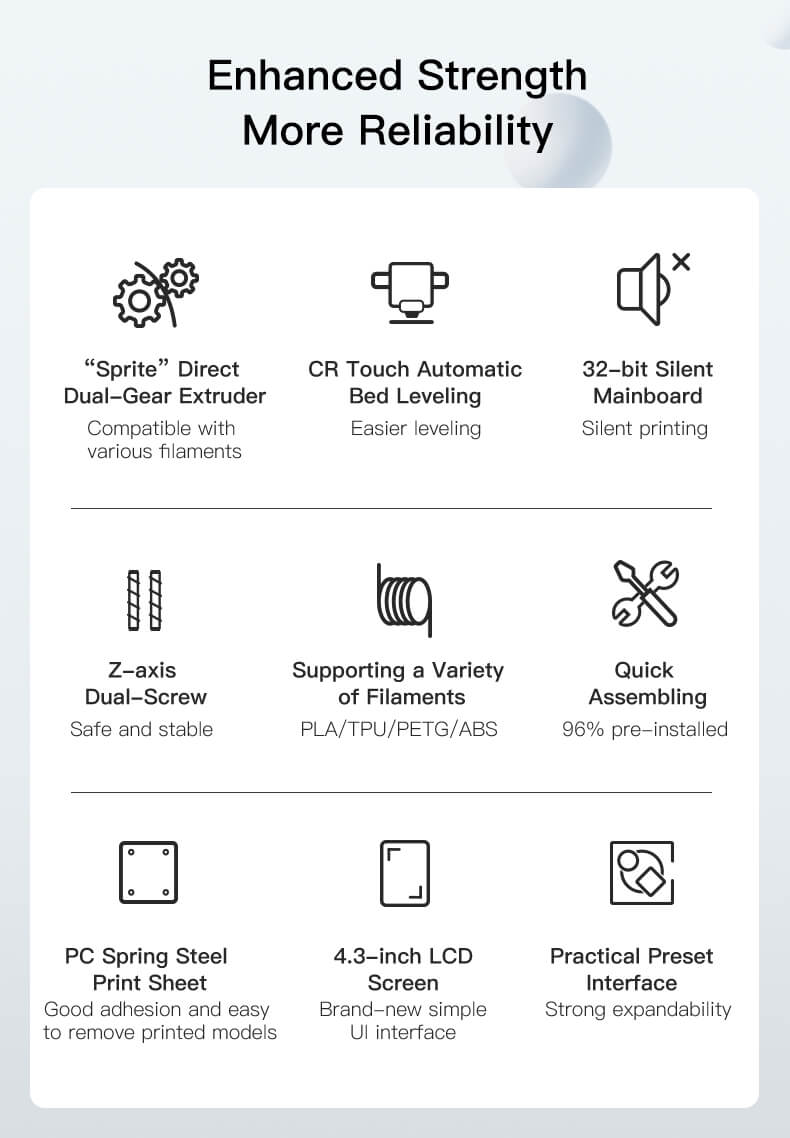

Creality Upgraded Ender 3: Ender-3 S1 Direct Drive | Auto Leveling 3D Printer

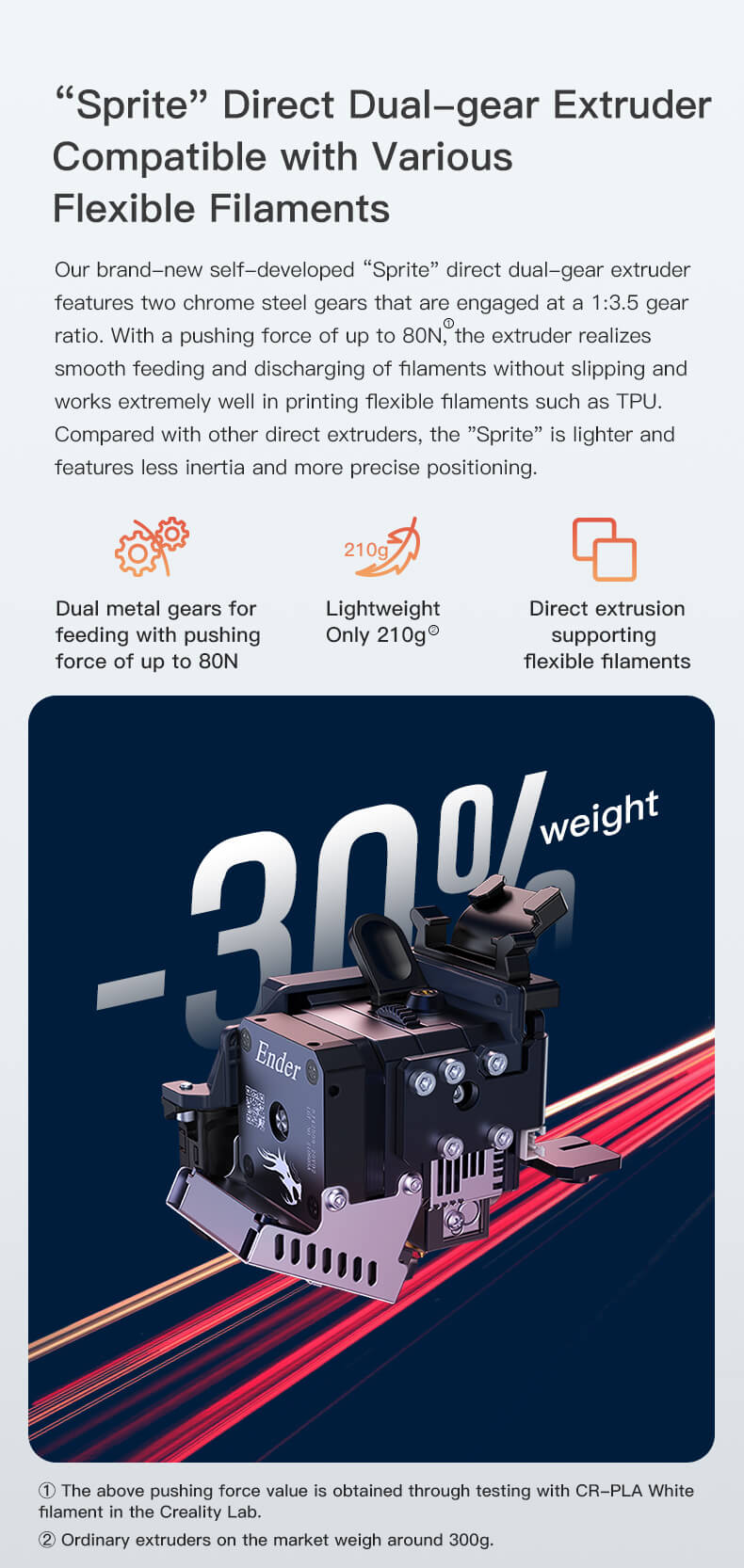

Sprite Direct Dual-Gear Extruder: The“Sprite" is lighter and features less inertia and more precise positioning, supports PLA/TPU/PETG/ABS print filaments.

Auto Leveling with Creality CR Touchcreality ender 3 s1 3d printer

PC magnetic build plate: Combina with the advantage of PC Spring Steel and Magnetic Sticker for the better bed adhesion and good experience for model released.


Z-axis Dual-screw+Z-axis Dual-motor Design: Compares to Ender-3, Ender-3V2, Ender-3Max, Ender 3S1 has upgraded to the Dual Z-axis designadds stability to the X-axis gantry to improve printing quality and reduce the wear on the mechanical components



- VIDEO GUIDES / UNBOXING /  DEPTH REVIEWS -

- Ender-3 S1 "Sprite" Extruder Work and Print;

-Ender-3S1 Unbox Reviews From 3D Printing Nerd

 - How to Upgrade Creality Ender 3 S1 to a High Temp Hot End



- Ender 3 S1 vs Ender-3 V2 in comparison -

What's difference between the Ender-3S1 and Ender-3V2:
Ender-3S1 is the first DIRECT DRIVE 3D PRINTER of CREALITY  in Ender Series. It supports more soft materials. That is the one of biggest difference between Ender-3S1 & Ender-3V2. Additionally, it comes preinstalled with CR Touching Auto Leveling Kit,  and the printing height will be more.
In details, most of function continued and updated on Ender-3V2.

Ender 3 S1 Ender 3 V2
Machine Size 487 x 453 x 622 mm 475 x 470 x 620 mm
Print volume: 220 x 220 x 270 mm 220 x 220 x 250 mm
Display: color 4.3 inch LCD display with rotary knob color 4.3 inch LCD display with rotary knob
Structure: mostly pre-assembled (~ 15 min.) Partially pre-assembled (> 45 min.)
Extruder: Direct Drive Bowden
Print bed leveling: Automatic Manual
Accuracy: 0,1 mm 0,1 mm
Min. layer thickness: 0,05 mm 0,1 mm
Nozzle: 1 x 0.4 mm 1 x 0.4 mm
Filament:  1.75 mm (PLA, ABS, PETG, TPU) 1.75 mm (PLA, ABS, PETG, TPU)
Max. nozzle temperature: 260 °C 255 °C
Max. print bed temperature: 100 °C 100 °C
Print speed: 30-60 mm/s (max. 150 mm/s) 30-60 mm/s (max. 180 mm/s)
Resume print: Yes Yes
Filament sensor: Yes No
Pressure bed: PC on spring steel, flexible, magnetic Textured glass bed



-Ender-3 S1: FAQ & Troubleshooting-

1. What size filament does the printer contain?

The package contains a coil of filament with a diameter of 1.75mm, a Test filament ( 200g ) and not on a spool .
We recommend you can purchase multiple filaments together when purchasing the printer, which is convenient for future operation.

2. How much size does the desktop need to be set aside?

Hi, the machine size 487 x 453 x 622 mm. You need at least 50cm (19.68inches) x 50cm (19.68inches) clear desk space.

If add a enclosure, the Desktop space required 70*75mm (27.55*29.53inches).

3. Why can't the filament stick to the hot bed?

If not stick to the bed. Please check the bed leveling.

The Ender 3 S1 adopts the CR-Touch automatic leveling system. When printing, observe the distance between the nozzle and the build plate. According to multiple printings, the Z-axis compensation value between -2.0 to -4.0 is great. Adjusting the Z-axis compensation point can print better results. Video Guide: https://www.youtube.com/watch?v=y-uUvu1Ruj0

4. what is the correct replacement part for the removable spring steel bed printing surface?

Texture Glass Bed, Spring Steel PEI Bed Plate(Smooth Surface)Upgraded: Frosted Cold + Soft Magnetic Plate

creality original part for ender-3s1, upgraded part for ender-3s1

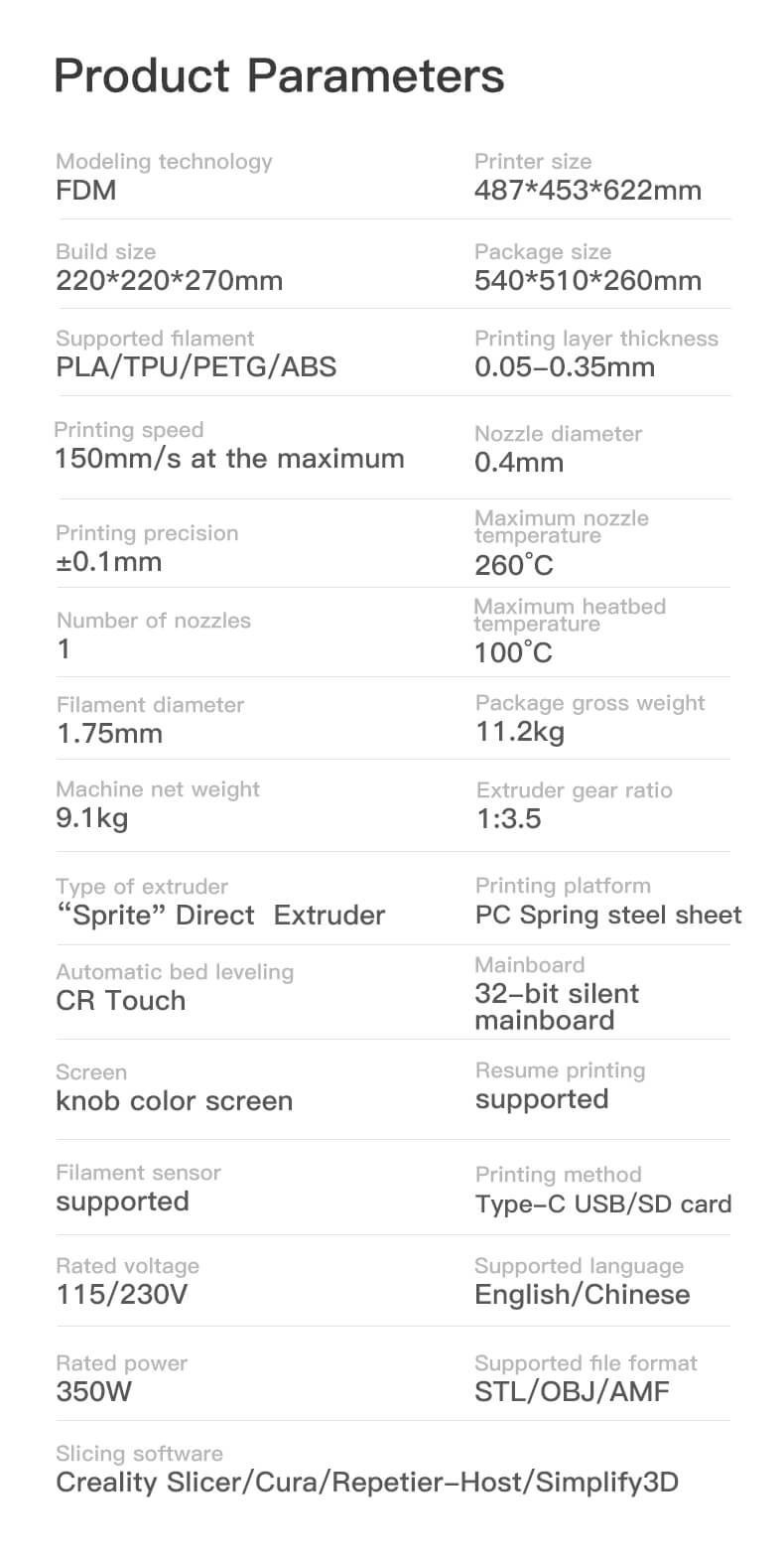

Ender-3 S1 Specifications

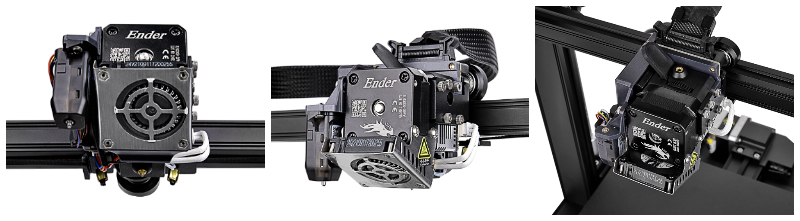

Extruder: "Sprite" Direct drive (extruder sits directly over the nozzle in the print head)s;
Print volume: 220 x 220 x 270 mms;
Accuracy: 0.1 mms;
Layer thickness: 0.05 – 0.35 mms;
Nozzle diameter: 0.4 mms;
Max. Nozzle temperature: 260 °Cs;
Max. Print bed temperature: 100 °Cs;
Max. Print speed: 150 mm/ss;
Filaments: PLA, ABS, PETG, TPUs;
Filament diameter: 1.75 mms;
Print bed: PC on spring steel, flexible, magnetics;
Print bed leveling: Automatic (CR-Touch);
Resume Print: Yes
Filament Sensor: Yes;

Ender-3 S1 Frimware
25 Mar. 2022. Ender-3s1-hw24s1_301-sw-V1.0.5_C-CRTouch.zip
Ender-3 S1 Manual
You could download or preview online
Z-axis limit firmware.zip
16 Dec, 2021 Z-axis Limit Firmware
Customer Reviews

Based on13reviews

  • 85%
  • 15%
  • 0%
  • 0%
  • 0%
Write A Review
Ask A Question
David Borgman
verified
My 1st 3d printer. Received it, had it up and running within 20 minutes with minimal knowledge of 3d printing. If you are looking for a plug and play type of printer, this is the one for you!!!
Amazon buyer
verified
Printer works as expected, first print was a success. Easy to install and the Ender 3 s1 combines all the upgrades available for Ender 3 and Ender 3 v2. Maybe still a bit expensive, but it was released in December 2021. Cons: the extruder head had a bent connector (see picture) who interfered with the installation and the fitment of the head to the metal support on the x axis. I had to bent it back carefully by myself, with the risk to crack the two small connectors. I think this is the most important and expensive part and this should not happen especially when you pay almost 600 dollars. For the rest i would strongly suggest this printer.
Jeff U.
verified
Great Product out of the box, with minimal set-up My first foray into 3D printing and I am totally taken with this product. I came in knowing nothing beyond some basics from youtube videos, and this went together quickly and I have been printing continuously since I got it. Prints are perfect, bed adhesion is excellent and so far (PLA only) absolutely zero problems.
Ehsan_Habibzada
verified
Funktioniert super . Habe nichts dran geändert außer der Druckplatte mir eine mit Pei Beschichtung zu kaufen. Die Standard ist sehr schnell fertig. Ist wohl aber Standard bei Creality. Kauf ihn, du wirst nicht enttäuscht sein. Sehr gute out of the box experience. 10Minuten Aufbau, Einmal gelevelt. Versatz per Hand etwas justiert über die Software, sehr gute Ergebnisse bereits beim test druck. So solls sein.
Mike
verified
I have been very happy with the S1. The assembly was easy (the instructions are very small, look at the SD card everything is on that). Get the bed leveled and get the right Z-Axis height and it just works! The Z-Axis critical for your success I have used PLA and TPU so far and had great luck. I just received the S1 Pro's all metal hot end to try my hand at nylon, carbon fiber, etc
Jim Desposito
verified
Amazing printer! I did tons of research to determine which, of all the great printers available, would my first. I had some experience using an Ultimaker 3 and was ready to spend up to $500 for my own printer. I was actually hoping Prusa would drop the long awaited i3 MK4 but who knows when that will happen and even so, I had a hard time justifying spending $750. So, I compared 15 printers across 12 different parameters and was leaning towards the new AnyCubic Kobra but hesitated due to its lack of a dual Z axis. Then I found out about the S1 and, quite honestly, it checked all my key 'gotta have' boxes. My experience with this printer after printing non-stop :) for a week is that it is an amazing printer overall, and especially for the price. I got the bundle that included a free PEI print bed and it works great. You can see below the terrific result I got printing @agepbiz's Surprise Egg #7 (https://www.thingiverse.com/thing:3223118), using 0.1 mm layer height. I highly recommend this printer for anyone looking for a great direct drive, dual Z-axis, good size print bed and easy build from just a few parts that costs under $500.
fanplant fanplant2021-12-25 02:31:24 VERIFIED
Question: What filaments does Ender 3 S1 support? Can print the High-temperature filament like nylon /PC?

Answer: The Ender-3 S1 Support the Filament PLA, TPU, PETG, ASA, SILK etc. The nylon material requires extra care to print; it needs to be extruded at high temperatures(260-300),keep the filament dry and print it in high ambient temperature. it is not supported now

Nick ward2022-07-28 08:41:10 VERIFIED
Question: Hi there I got a ender 3 S1 last week from Amazon now I got a new PEI plate for it now it says the size is 220+ 220+ 270. Can I tell you something it’s not that size it’s a standard size 235+ 235 because my ender 3 v1 glass plate fits it spot on now I think creality needs to go back to sort the mastics out?. I did work it out so if you can contact me and I can give you some more information about it and I can send you video how a worked it out. Thank you. Nick ward

Answer: The whole bed size(clear space) is 235*235mm, and the allowing printing space is 220*220 and the max height is 270mm
